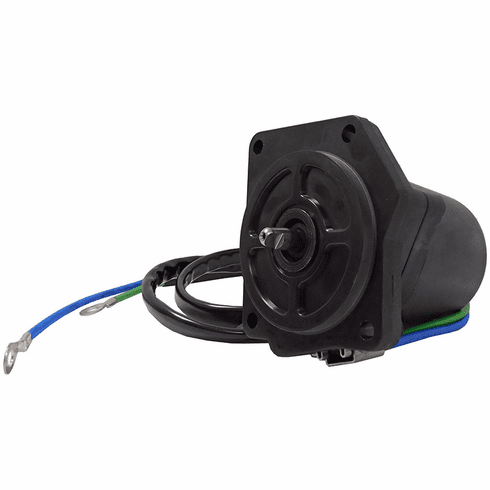

Tilt Trim Motor for Yamaha F75LA TLR F90TLR TXR XA LA 90H & More
**All parts are 100% brand new and meet or exceed OEM specifications.**
**Units may differ in color from listing photos and are for U.S. Models only (unless otherwise noted)**
**Fitment information below is accurate to the best of our knowledge and should be used for reference only. If you have any questions about fitment, please call our parts specialist before placing your order. For further assistance call 586-257-1515
Product Description
This unit is SAE J1171 Marine Ignition Protection Certified
DESCRIPTION: TILT/TRIM MOTOR
OEM(S): YAMAHA
VOLTAGE: 12
ROTATION: REVERSIBLE
OD: 2.563IN / 65.1MM
SHAFT OD: 0.311IN / 7.9MM
LENGTH: 5.496IN / 139.6MM
TERMINAL 1 SIZE: WIRE
TERMINAL 2 SIZE: WIRE
SHAFT: 3.4MM KEYED
CURRENT TYPE: DC
NOTES:
OE SHAFT LENGTH MAY VARY - USE SUPPLIED COUPLER IF LONGER SHAFT LENGTH IS NEEDED
REPLACES:
ARCO 6258
YAMAHA 6D8-43880-00-00, 6D8-43880-01-00, 6D8-43880-09-00, 6D8-43880-00, 6D8-43880-01, 6D8-43880-09
USED ON:
YAMAHA F75 75H 2005, 2006, 2007, 2008
YAMAHA F75 75H 2005, 2006, 2007, 2008
YAMAHA F75LA 75H 2013, 2014, 2015, 2016, 2017, 2018
YAMAHA F75TLR 75H 2005, 2006
YAMAHA F75TLR 75H 2007, 2008, 2009, 2010, 2011, 2012
YAMAHA F90 90H 2005, 2006, 2007, 2008
YAMAHA F90 90H 2005, 2006, 2007, 2008
YAMAHA F90JA 90H 2013, 2014, 2015, 2016, 2017, 2018
YAMAHA F90LA 90H 2013, 2014, 2015, 2016, 2017, 2018
YAMAHA F90TJR 90H 2005, 2006
YAMAHA F90TJR 90H 2007, 2008, 2009, 2010, 2011, 2012
YAMAHA F90TLR 90H 2005, 2006
YAMAHA F90TLR 90H 2007, 2008, 2009, 2010, 2011, 2012
YAMAHA F90TXR 90H 2005, 2006
YAMAHA F90TXR 90H 2007, 2008, 2009, 2010, 2011, 2012
YAMAHA F90XA 90H 2013, 2014, 2015, 2016, 2017, 2018
MCR PART NUMBER: 10886N
DESCRIPTION: TILT/TRIM MOTOR
OEM(S): YAMAHA
VOLTAGE: 12
ROTATION: REVERSIBLE
OD: 2.563IN / 65.1MM
SHAFT OD: 0.311IN / 7.9MM
LENGTH: 5.496IN / 139.6MM
TERMINAL 1 SIZE: WIRE
TERMINAL 2 SIZE: WIRE
SHAFT: 3.4MM KEYED
CURRENT TYPE: DC
NOTES:
OE SHAFT LENGTH MAY VARY - USE SUPPLIED COUPLER IF LONGER SHAFT LENGTH IS NEEDED
REPLACES:
ARCO 6258
YAMAHA 6D8-43880-00-00, 6D8-43880-01-00, 6D8-43880-09-00, 6D8-43880-00, 6D8-43880-01, 6D8-43880-09
USED ON:
YAMAHA F75 75H 2005, 2006, 2007, 2008
YAMAHA F75 75H 2005, 2006, 2007, 2008
YAMAHA F75LA 75H 2013, 2014, 2015, 2016, 2017, 2018
YAMAHA F75TLR 75H 2005, 2006
YAMAHA F75TLR 75H 2007, 2008, 2009, 2010, 2011, 2012
YAMAHA F90 90H 2005, 2006, 2007, 2008
YAMAHA F90 90H 2005, 2006, 2007, 2008
YAMAHA F90JA 90H 2013, 2014, 2015, 2016, 2017, 2018
YAMAHA F90LA 90H 2013, 2014, 2015, 2016, 2017, 2018
YAMAHA F90TJR 90H 2005, 2006
YAMAHA F90TJR 90H 2007, 2008, 2009, 2010, 2011, 2012
YAMAHA F90TLR 90H 2005, 2006
YAMAHA F90TLR 90H 2007, 2008, 2009, 2010, 2011, 2012
YAMAHA F90TXR 90H 2005, 2006
YAMAHA F90TXR 90H 2007, 2008, 2009, 2010, 2011, 2012
YAMAHA F90XA 90H 2013, 2014, 2015, 2016, 2017, 2018
MCR PART NUMBER: 10886N
